UV- Vis Spectro Photometer
“UV–Vis Spectrophotometer for reliable concentration and purity analysis.“

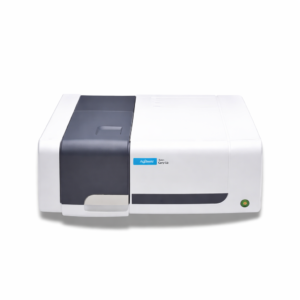

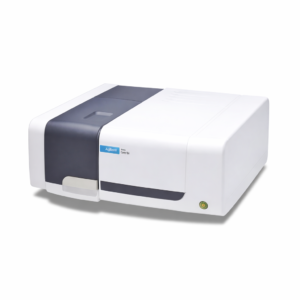

The UV–Vis Spectrophotometer is an advanced analytical instrument used for quantitative and qualitative analysis by measuring absorbance in the ultraviolet and visible wavelength range. It delivers high accuracy, reliability, and consistent results for concentration and purity analysis across various samples.Designed for user convenience, the instrument features intuitive controls, a clear digital display, and fast measurement capabilities. Widely used in pharmaceutical, food, environmental, and research laboratories, the UV–Vis spectrophotometer plays a key role in quality control and analytical research. You can explore more about our laboratory equipment solutions and analytical instruments for advanced testing applications. For technical details, refer to global standards available on the ISO website.
High Measurement Accuracy
Designed to deliver precise and reliable absorbance and transmittance measurements across the ultraviolet and visible wavelength range for consistent analytical results.
Advanced Optical System
Incorporates high-quality light sources and optics to ensure excellent wavelength accuracy, stability, and minimal stray light interference.
Wide Wavelength Range
Covers both UV and visible regions, enabling diverse applications including concentration analysis, purity testing, and reaction monitoring.
User-Friendly Operation
Equipped with an intuitive interface, digital display, and simple controls for easy operation and quick data acquisition.
Stable & Reliable Performance
Engineered for long-term stability with low noise and high repeatability, ensuring dependable performance during routine and continuous laboratory use.
Versatile Application Use
Ideal for pharmaceutical, food & beverage, environmental, biotechnology, and academic research laboratories.
| PARAMETERS | SPECIFICATIONS |
| Product Type | UV–Vis Spectrophotometer |
| Optical System | Single beam / Double beam (as applicable) |
| Wavelength Range | 190–1100 nm |
| Spectral Bandwidth | ≤ 2 nm |
| Wavelength Accuracy | ± 0.5 nm |
| Photometric Range | 0–200%T, −0.3 to 3.0 Abs |
| Photometric Accuracy | ± 0.5%T |
| Light Source | Deuterium lamp (UV) and Tungsten–Halogen lamp (Visible) |
| Sample Holder | Standard 10 mm quartz / glass cuvettes |
| Display & Interface | Digital display with user-friendly software |
| Applications | Pharmaceutical, food, environmental & research laboratories |
